Model Sea-Surveyor 2022-2023 CAT v1
Length : 12m (38’)
Beam: 7.6m (25’)
Height: 2 / 6m (mast down/up)
Draft: 0.8m
Weight: 12,500kg – ready to operate
Propulsion diesel: 125hp Steyr diesel engine with fixed pitch propeller
Propulsion diesel: 35hp electric engine with fixed pitch propeller
Speed: 15 knots (max)
Endurance: Up to 80 days @ 4 knots
Payload power: > 6 kW @ 4 knots
Payload: 3 tons max or 5 tons short distance
Cabins for passengers: 4 men
- Bidirectional Narrow Bandwith Control (BNBC): remote autonomy engine for direct, supervised
and autonomous operation Communication: distance of 600 km from coast (max 800km) by using a
remote controller based on LORAWAN telco system operational until starlink satellite
communication deployment and Maritime Broadband Radio/Iridium (VSAT) optional meanwhile if
required.
- Bidirectional Wide Bandwith Control (BWBC): remote autonomy engine for direct, supervised
and autonomous operation Communication: by using a starlink connecion based full bandwith
(from 2025)

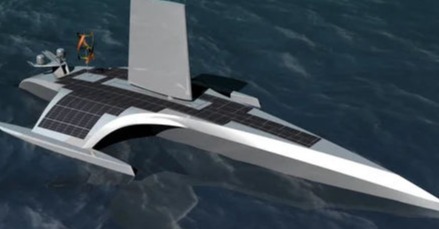

Model Sea-Surveyor 2022-2023 TRI v1
Length : 17m (56’)
Beam: 9m (30’)
Height: 2 / 6m (mast down/up)
Draft: 1.2m
Weight: 16,800kg – ready to operate
Propulsion diesel: 250hp Steyr diesel engine with fixed pitch propeller
Propulsion diesel: 35hp electric engine with fixed pitch propeller
Speed: 20 knots (max)
Endurance: Up to 80 days @ 4 knots
Payload power: > 10 kW @ 4 knots
Payload: 5 tons max or 7 tons short distance
Cabins for passengers: 8
Control: remote autonomy engine for direct, supervised and autonomous operation Communication:
- Bidirectional Narrow Bandwith Control (BNBC): remote autonomy engine for direct, supervised
and autonomous operation Communication: distance of 600 km from coast (max 800km) by using a
remote controller based on LORAWAN telco system operational until starlink satellite
communication deployment and Maritime Broadband Radio/Iridium (VSAT) optional meanwhile if
required.
- Bidirectional Wide Bandwith Control (BWBC): remote autonomy engine for direct, supervised
and autonomous operation Communication: by using a starlink connecion based full bandwith
(from 2025)
